Outdoor catenary LED luminaires
ClassicBox or SmartBox version

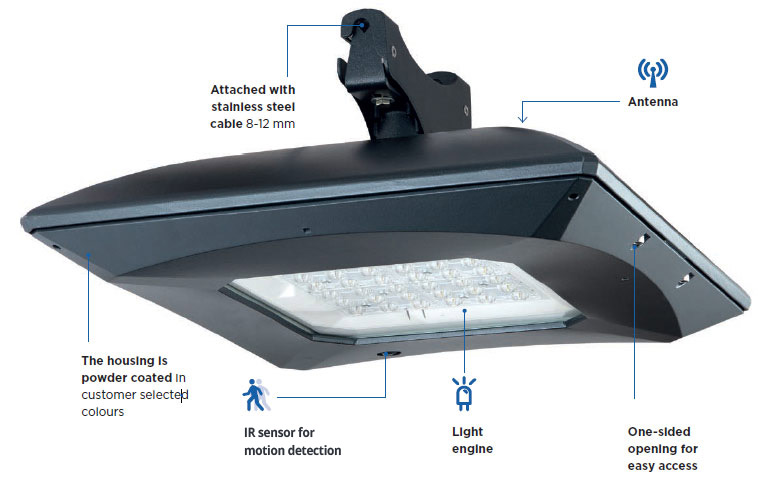

This durable and high performance LED luminaire is a great street lighting solution made for central suspension with stainless steel cable attachments. With built-in IR or microwave sensor for motion detection this luminaire enhances city safety and supports energy savings.
Aluminium housing is chemically pre-treated and painted with powder coating that enhances the durability and allows for individual colour choice. Design enables future add-ons of sensors, antennas etc. and its one-sided opening grants easy access.
|
|
|
COMMON SPECIFICATIONS
| Application | Arterial roads, collecting roads |
| Light classes | ME3-ME5, S1-S3 |
| Suggested mounting height |
6–10 m |
FOTOMETRIE

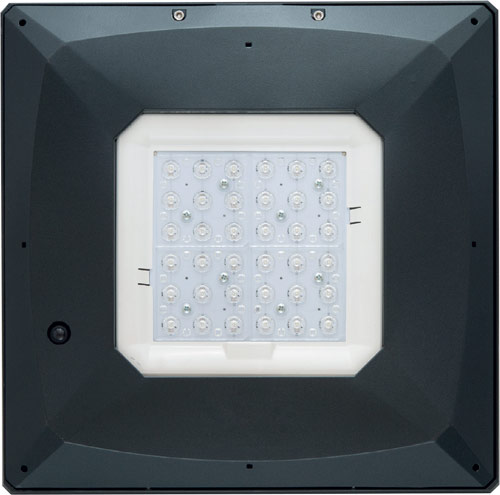

| Number of LEDs | up to 36 |
| Lifetime | > 100 000 h |
| Colour temperature | 4000 K (optional 3000 K and 5000 K) |
| Lighting current | max. 8800 lm |
| Colour rendering index CRI | ≥ 75 |
| Optic | Acrylic UV resistant lenses |

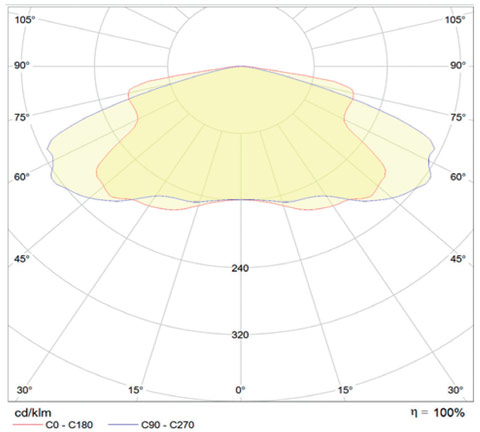

| Light diffusion | asymmetrical or symmetrical |
ELECTRONIC
| Power consumption | up to 70 W |
| Energy efficiency class | A+ |
| Reduction of performance |
Continuous dimming 0-100% up to 100 000 h |
| Operational voltage | 90-290 VAC; 47-63 Hz |
STANDARD REQUIREMENTS
CE characterization / EMV guide lines / Photobiologic reliability (Riskclass 2)
| 9,7kg |  |
A+ | IP65 |  |
Ar | CLASSIC BOX |
SMART BOX |
